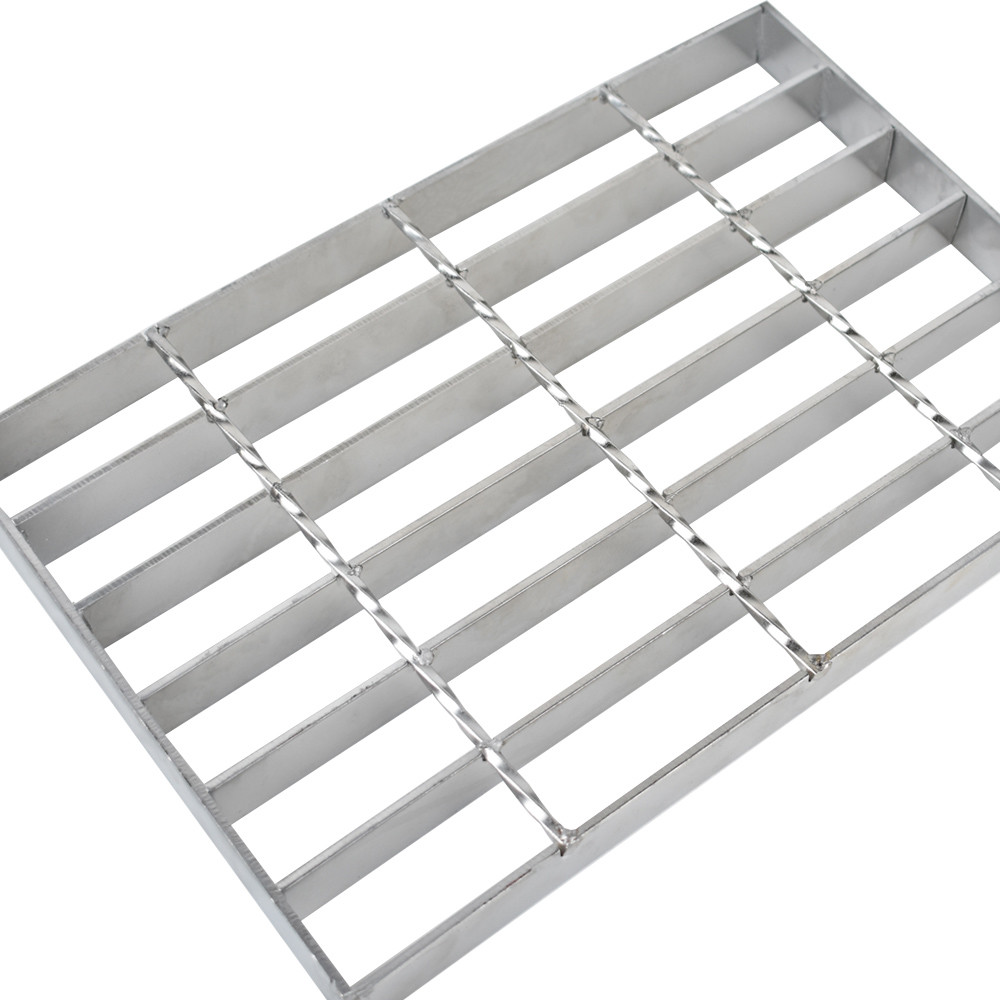

Hot Dip Galvanized Flooring Heavy Duty Steel Grating 32*5mm Anti-Skid

Product Categories

Hebei Zhuote wire mesh products Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TT

Model Number : ZT

Certification : ISO 9000-2015

Place of Origin : Anping,china

MOQ : 1 tons

Price : Negotiable

Payment Terms : L/C T/T

Supply Ability : 100 TONS/DAY

Delivery Time : 5-10 work days

Packaging Details : Wooden Pallet/Steel Pallet Or Customazation

Material : Steel,Q235,q235 carbon steel

Surface treatment : Hot Dipped Galvanized

Product name : industrial floor steel Grating with long time

Type : Plain Bar Grating

Application : platform, walkway, stair treads

Standard : ISO9001,YB/T 4001.1-2007

Contact Now

Hot Dip Galvanizing Steel Grating

2. Types

3. Welded Steel Bar Grating Specification:

No.	Item	Detailed Description
1	Bearing Bar	25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
1	Bearing Bar	US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2	Bearing Pitch	12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
2	Bearing Pitch	US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3	Cross Bar Pitch	38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4	Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self coloures, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Grating Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
7	Grating Standard	UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

4. Metal Grate Picture and Application

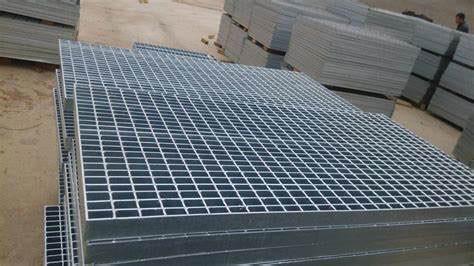

Hot Dip Galvanized Flooring Heavy Duty Steel Grating 32*5mm Anti-Skid

5. How we make a grating, right here in Anping.....
