Steel Expanded Metal Sheet Flattened (3mm thickness) . 1.2x2.4m panel sheet
Expanded Metal Mesh Description:
Material: Aluminium plate, thin low carbon steel plate(black plate,electric galvanized plate, hot-dipped galvanized plate), stainless steel plate, Al-Mg alloy plate, copper plate and nickel plate,etc.
Processing: Made by expanding. In the shapes of diamond, square, round, triangle and scale-like opening.
Features: Economic, enduring, graceful.
Uses: Be broadly used in the areas such as highway, railway, residence, irrigation works and the
Protection partition of machines, electrical appliances, windows and aquiculture.
Size: Long way of mesh: 12.5-200mm,
Short way of mesh: 5-80mm,
Thickness: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.
Standard, or raised, expanded metal is an extremely versatile material. It’s easy to control the percentage of open area to suit the application by altering the pattern size and/or strand width, thus increasing the flow of air or light in the finished product. Expanded metal offers a tremendous amount of formability — it’s able to withstand a 90-degree bend within a 1/4” inside radius without breaking.
Manufacturers that are concerned about minimizing operating expenses will appreciate raised expanded metal’s cost-effectiveness. The slitting and stretching process produces no scrap or waste material.
Expanded Metal Mesh Material And Specifications
Expanded metal mesh can be made from a wide range ofmaterials, chiefly expanded steel mesh,
aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal.
| Specification of Expanded Metal Mesh |
| Sheet Thickness | | | Stem | | | |
| Opening in Width | Opening in Length | Roll Width | Roll Length | Weight |
| mm | mm | mm | mm | kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Expanded Metal Mesh Usage
Expanded Steel/Aluminium Sheet can be used as steel reinforcement materials in petroleum, chemical industry and building decorations, fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding etc.

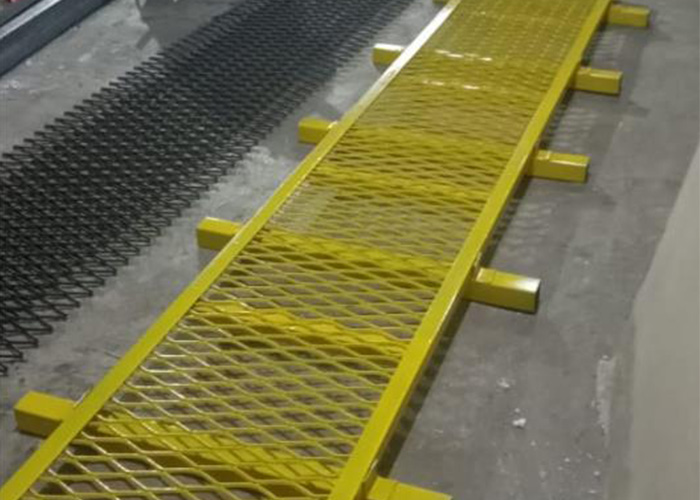

Expanded Metal Mesh Sheet Picture:
|
|
Steel Expanded Metal Sheet Flattened (3mm thickness) . 1.2x2.4m panel sheet Images
|
